Product Description

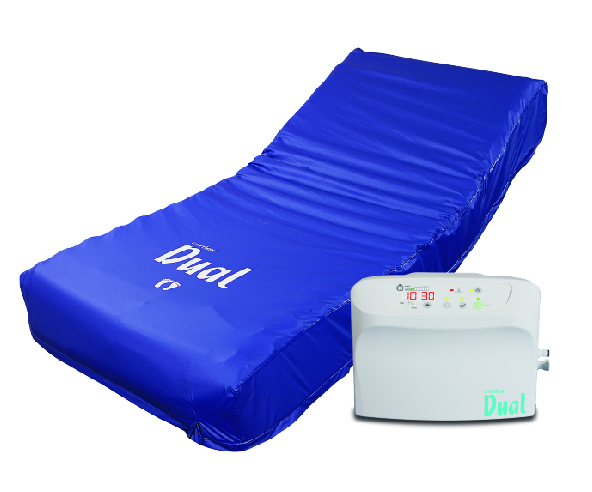

The Dual is an intelligent pressure relief anti-decubitus mattress replacement system that provides both alternating and static modes with a microprocessor driven digital power unit. It is the ideal therapy system with Upright and Firm modes for different positions and treatment purposes to suit high risk patients who demand pressure ulcer prevention or treatment up to stage IV.


Power Unit

  • Dual ability - offers both alternating and static modes to meet individual patient's needs (choices of alternating cycle time 10, 15, 20, 25 minutes, or 0 for static mode)
  • IPS (Intelligent Pressure Sensing) technology - ensures maximum relief for therapeutic treatment
  • Microprocessor driven control panel - for accurate and consistent pressure settings to minimize human error
  • Upright mode - provides additional support whilst patient is in articulated position to prevent bottoming out
  • Firm mode - rapidly inflates the mattress to maximum internal pressure for transferring patients or nursing purposes
  • Panel lock - automatically activates panel lock to disable all buttons if the control panel is untouched for 3 minutes
  • Digital LED display - displays patient's weight setting and cycle time
  • Visual / Audible alarms - indicate when low pressure or power failure occur
  • Memory recall - recalls previous settings when power returns to system
  • Low noise - integrated airchamber and enclosure design reduces noise effectively


  • Integrated 2" convoluted foam base - for extra protection in case of power outage
  • Weight capacity - patients up to 200 kg
  • Rapid deflation facility (CPR) - in cases of emergency the CPR deflates the entire mattress within seconds
  • Transport plug - allows mattress to stay inflated for approximately 2 hours after being detached from power unit
  • Pillow function - head zone comprised of 3 static air cells for patient comfort
  • 20 x 8" air cells - provides maximum pressure relief and therapy while allowing for great air circulation and optimal patient temperature regulation, 100% nylon with TPU lamination
  • Dartex coverlet - four-way stretch to minimize shear forces, waterproof but vapor permeable, fire retardant, anti-bacterial and anti-fungal coated, Oekotex certified, 100% nylon with PU backing


Power Unit - 29.5 x 22.5 x 12.0 cm

Mattress (inflation)
Standard - 200 x 90 x 13 cm
Narrow - 200 x 82 x 13 cm
